oil purifier oil purification oil filtration oil treatment from China manufacturer - A Zhong Neng Vacuum Transformer oil purifier manufacture Co.,Ltd

oil purifier oil purification oil filtration oil treatment

Payment Terms:	T/T,L/C
Place of Origin:	Chongqing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ZYD

Delivery Date: 7 days

Function: Oil Filter

Brand Name: Zhong Neng

Moisture (water content): ≤ 3 PPM

Impurities Degree (Filtration precision): ≤1 (without free carbon) μm

Packing: wooden case

Structure: Vacuum Filter

Material: Others

Breakdown Voltage (Dielectric): ≥80 KV

Gas Content: ≤0.1%

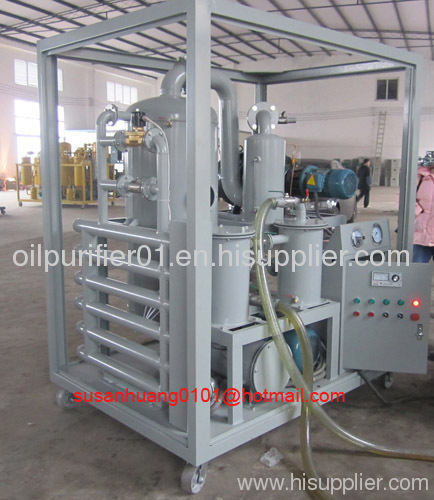

Series ZYD Double-stage vacuum transformer oil purifier can remove the water, gas and impurities in insulation oil high-efficiently

Application:

Series ZYD Double-stage transformer oil purifier can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipments working safely and normally. Series ZYD oil purifier is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work onsite. Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.

Features:

1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.

2. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.

3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.

4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies.

5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.

7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

8. Functions of live line work onsite, vacuum drying and vacuum oil filling.

We supply oil purifier machine as below:

1. Insulating oil purifier/ Transformer oil purifier/ Dielectric oil treatment

1.1. Series ZY: Zhongneng vacuum Insulation oil purifier

1.2. Series ZY-A: Zhongneng PLC type automatic Vacuum Transformer oil/ Insulation oil automation filtration

1.3. Series ZY-R: Zhongneng vacuum Insulation oil / Transformer oil regeneration

1.4. Series ZYB: Zhongneng Multi-Functional oil Regeneration purifying machine

1.5. Series ZYD: Zhongneng Double-stage vacuum Transformer oil purifier, oil filtration, oil purification, oil treatment

1.6. Series ZYD-A: Zhongneng PLC type Automation Double-stage vacuum Transformer oil purifier

1.7. Series ZYD-I: Zhongneng Double-stage vacuum Transformer oil regeneration purifier

1.8. Series ZYD-E Zhongneng Weatherproof Vacuum Transformer oil purification, oil treatment plant

1.9. Series ZYD-M: Zhongneng Mobile Type Transformer Oil Purification Plant, Oil Recycling

2.0. Series ZYD-E: Zhongneng Enclosed Type Transformer Oil Purification Plant, Oil Recycling

2. Series TY Turbine oil purifier
3. Series TYA Lubricating oil purifier
4. Series TYA-I Phosphate Ester Fire-resistant oil purifier
5. Series TYC Lubricating oil regeneration purifier
6. Series TYB Coalescence-Separation oil purifier
7. Series LY Plate Pressure oil purifier
8. Series JL Portable oil purifier

(
